The Project
Every other line in M*A*S*H feels like a setup or punchline, but it can be tough to remember them all.
Luckily, with M*A*S*H Quotes on Demand, you’ll always have the best M*A*S*H quote for the occasion.
If you want to explore the gritty details, this page has all files and assets for the full project
3D Files

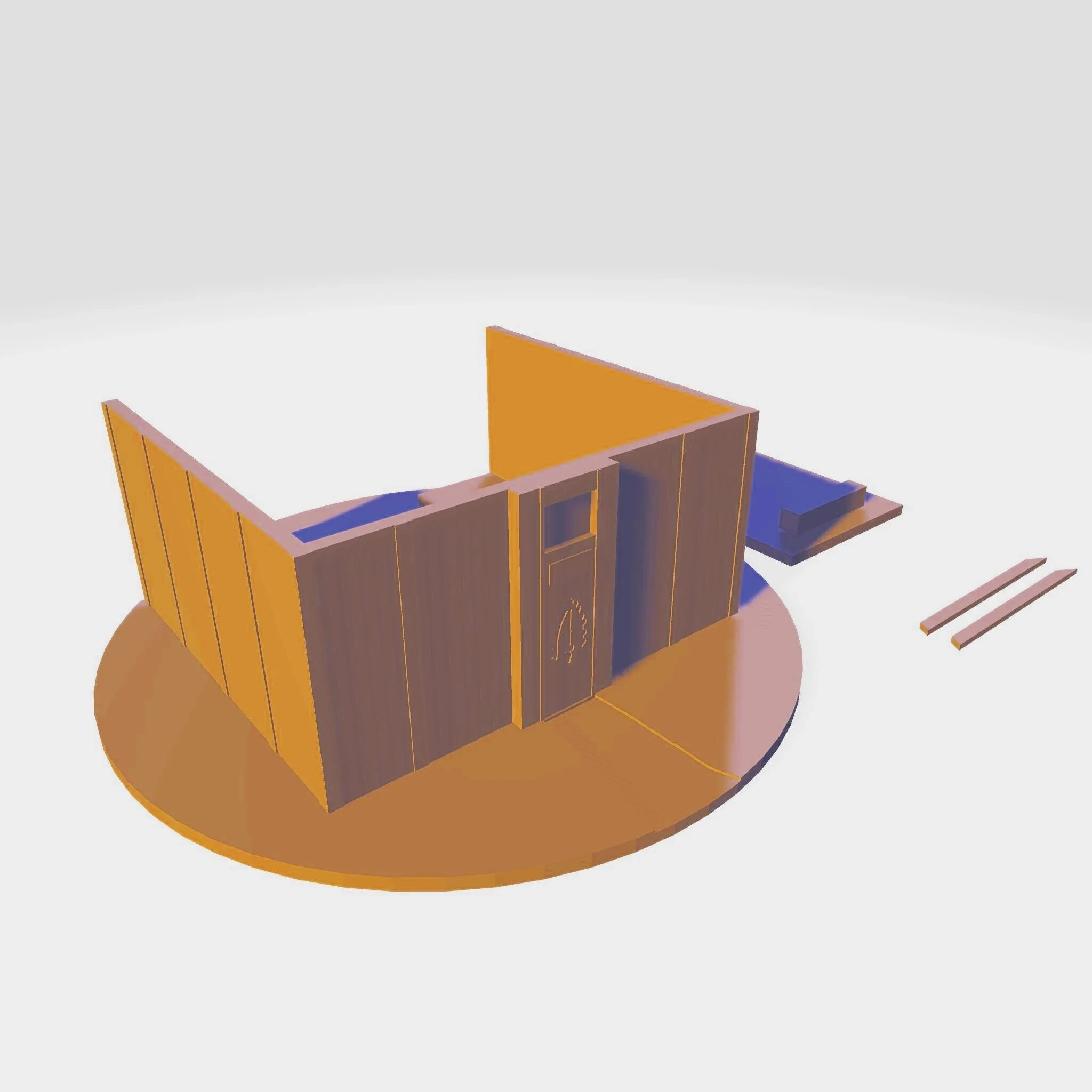

Walls, Base & Details
The plate fits in a slot on the rear of the walls/base.
The two detail sticks sit on either side of the door.
Roof

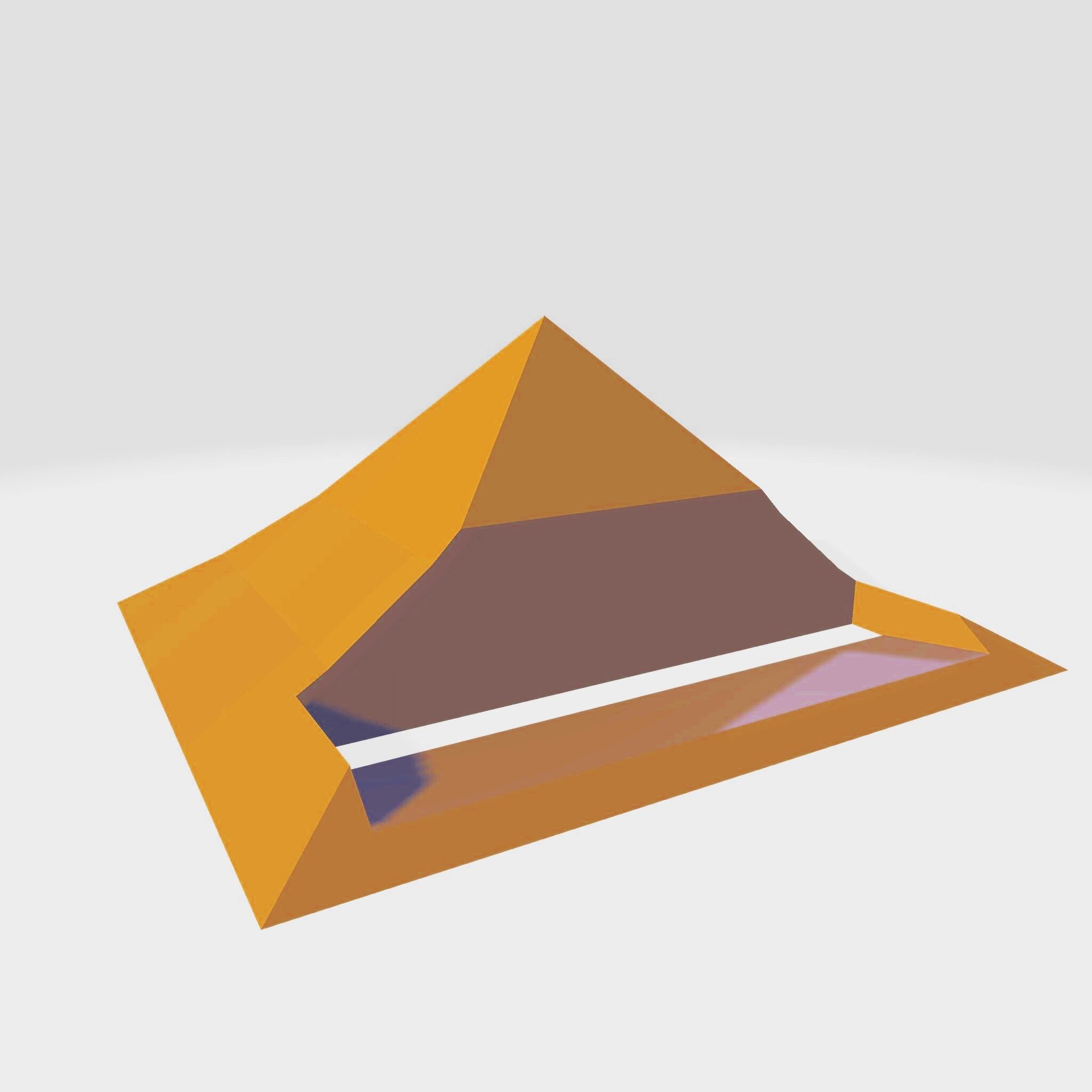

The roof has a ramped slot making it easy to reload and pull new quotes.

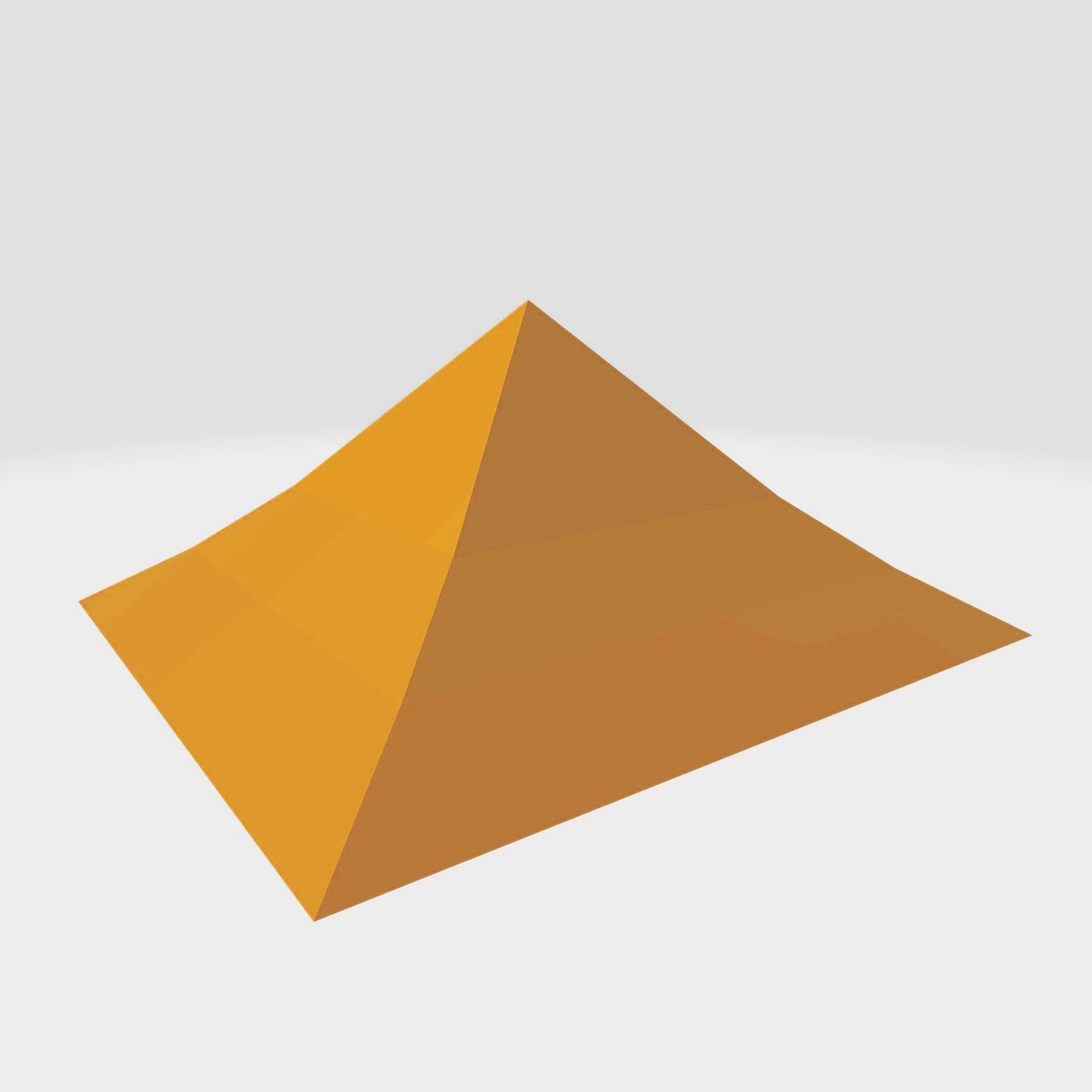

For a non-quote based version of the swamp, you can print the roof without the slot.

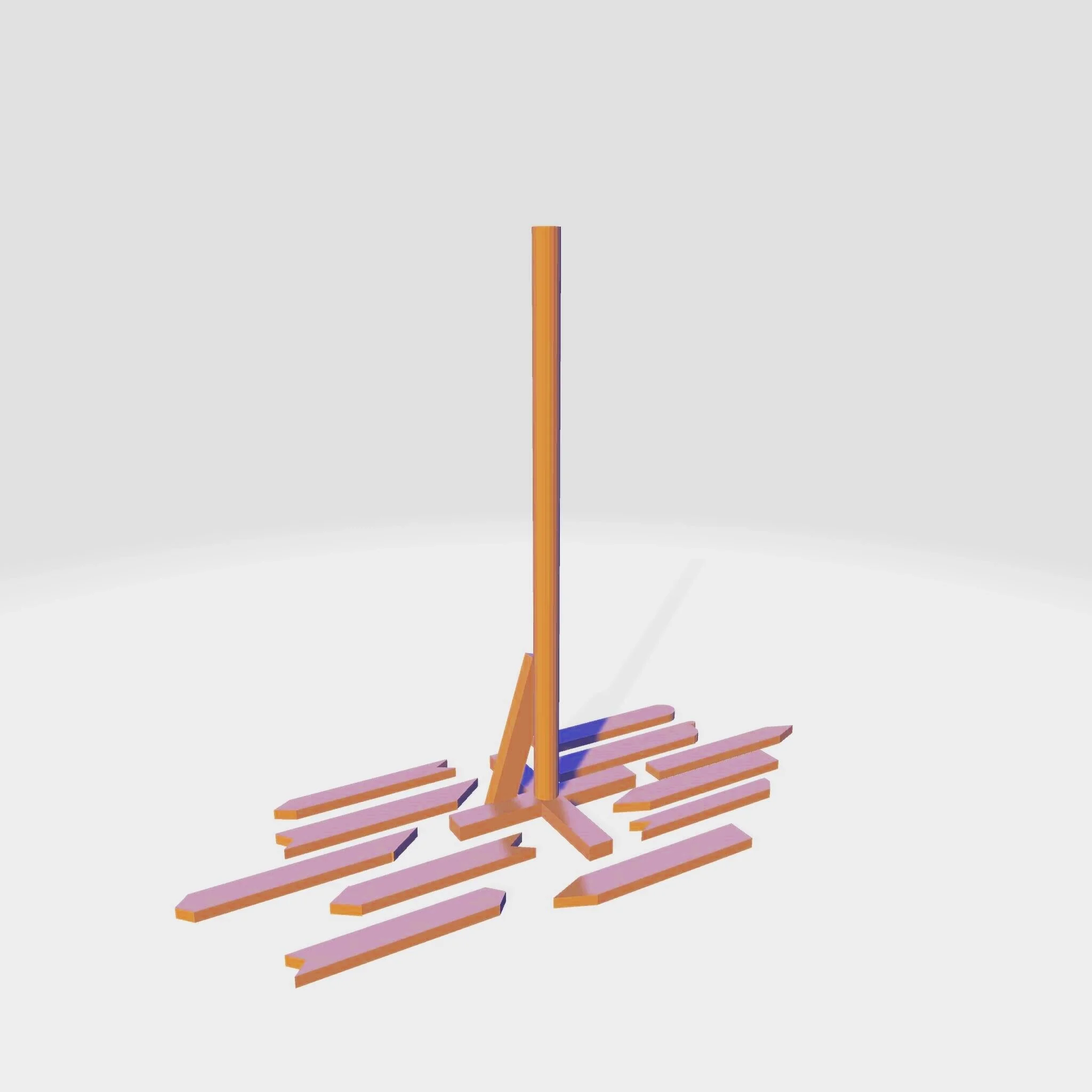

The Signpost
Signs are ordered in two columns. The top left sign is first. The bottom right sign is last.
The sign decal matches the pattern for proper placement.

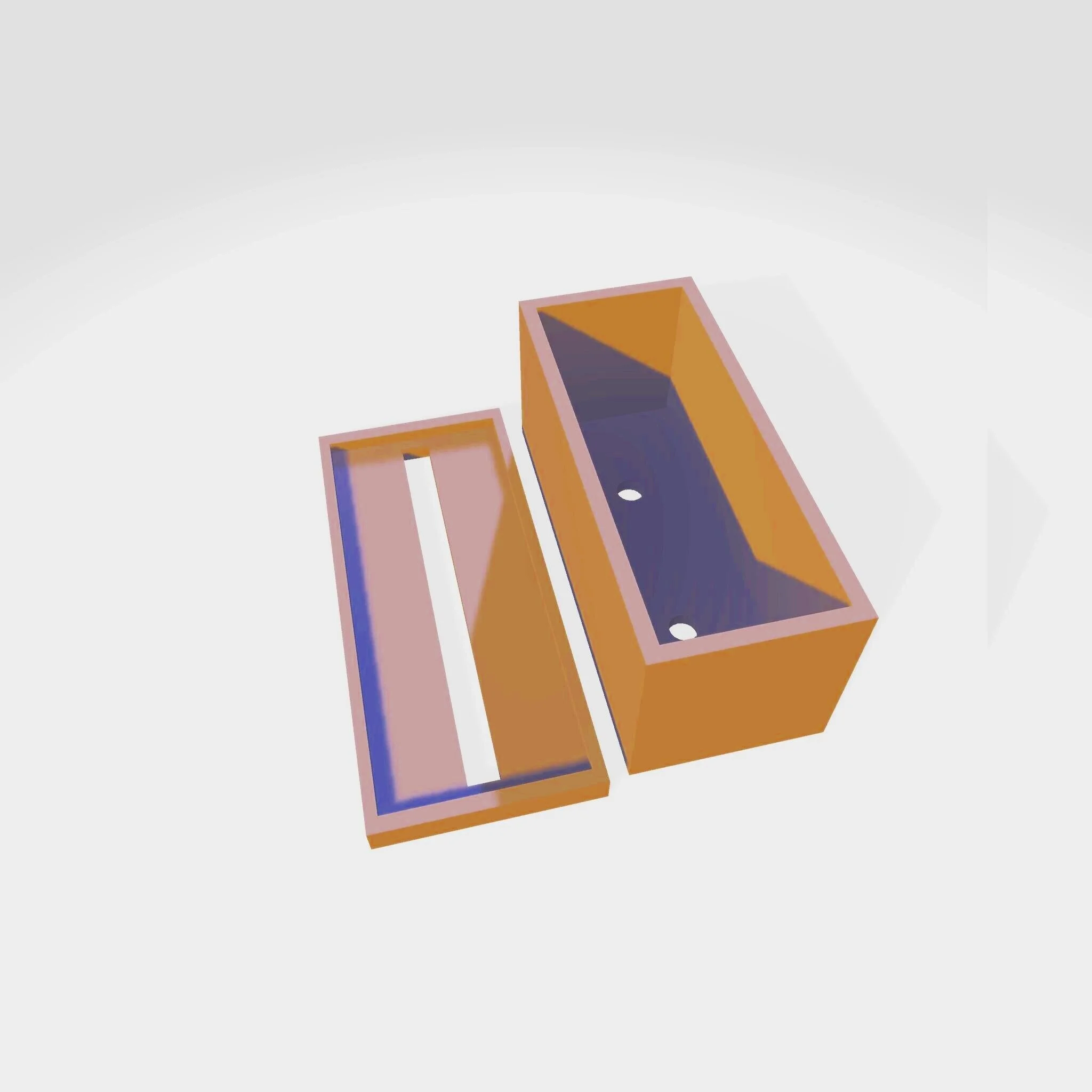

Quote Dispenser
A quote dispenser box. Holes are provided for guide screws if you want a sure fit/slide in the box.
Chairs
Chairs deconstructed. Left chair is built from the 4 left pieces. Right chair is built from the right two pieces.
Print Files

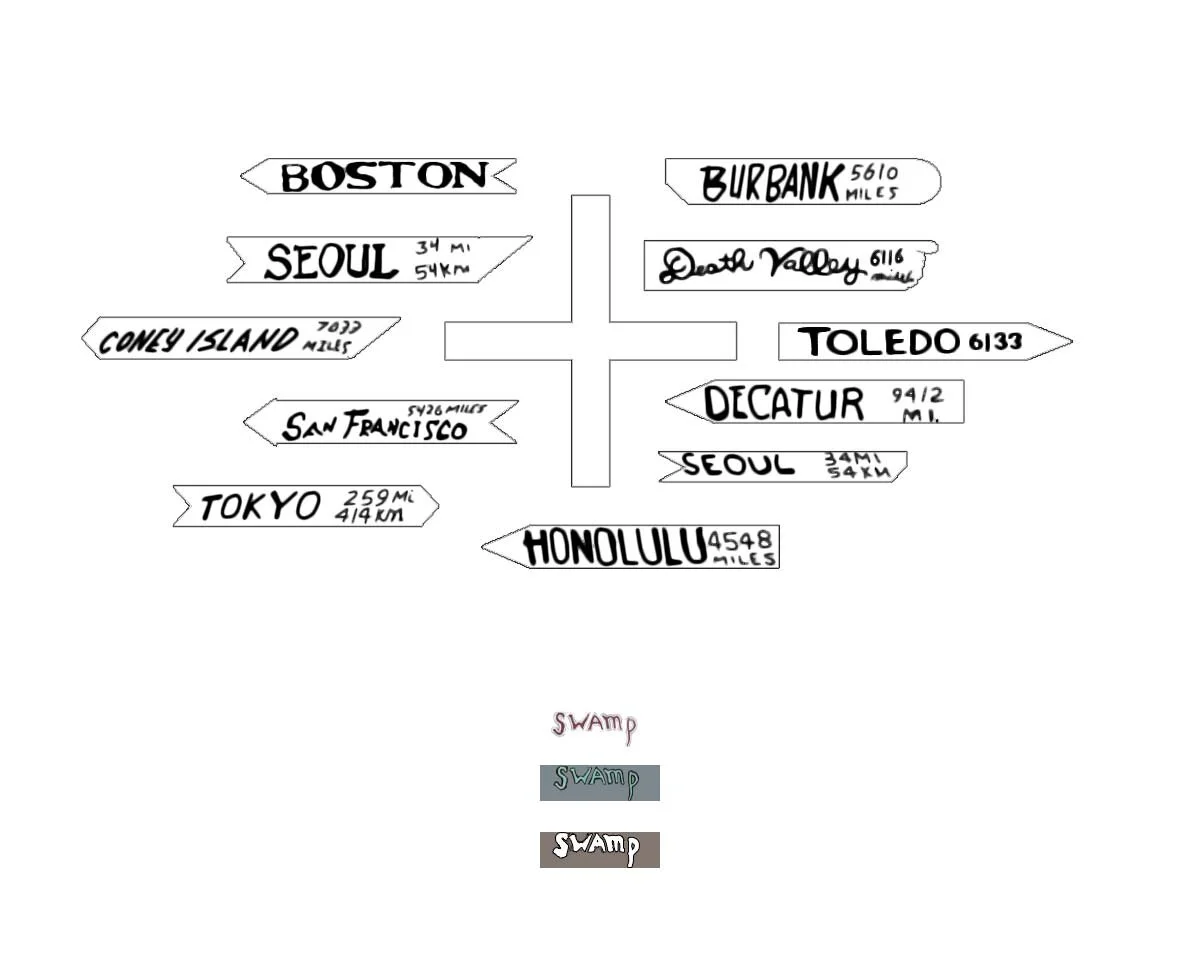

Decals
The sign decals match the 3D print file.
There are three options for the Swamp door banner. Choose your preference.
Download PDF

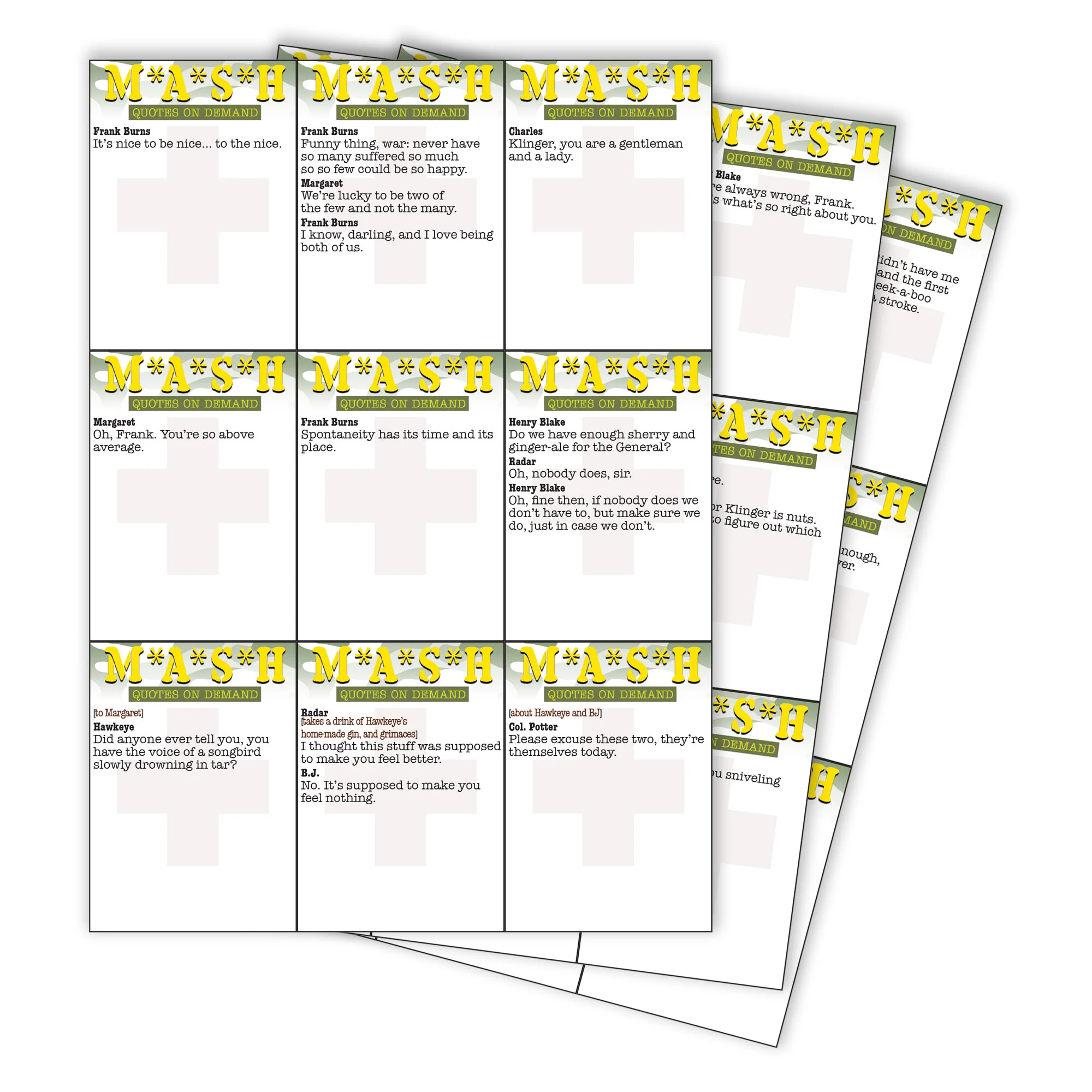

Quote Cards
The quote cards are available in sheets of 9. The full PDF has 146 pages.

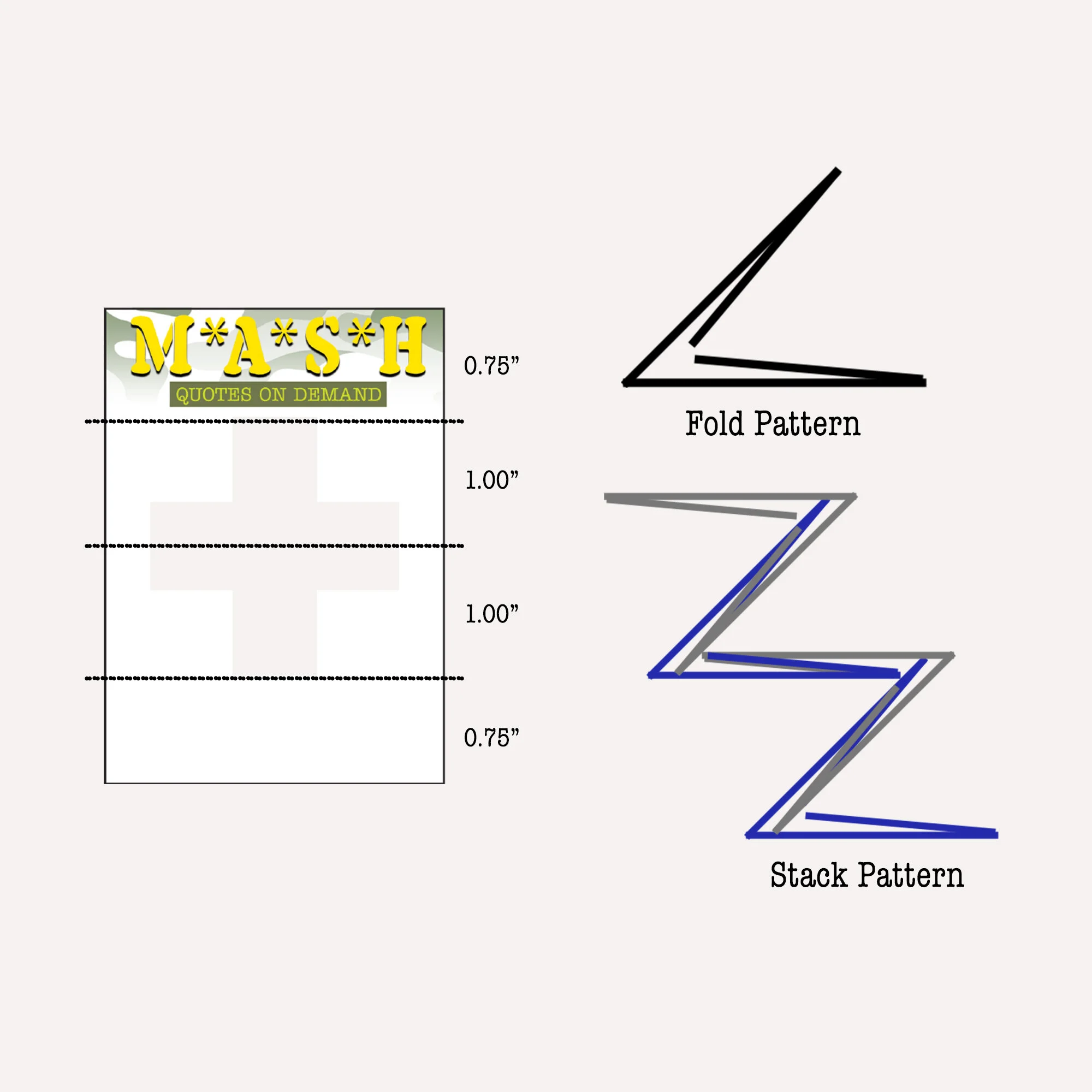

Quote Card Assembly
Fold each quote card (print in) 0.75” from the top and bottom, and in half. The final card should match the Fold Pattern shown.
The cross on each card can be used as guides for the top and bottom fold lines. It can be folded in half to find the middle fold line.
Stack folded cards by sliding the inner lip of the next card so it slots inside the folded lip of the previous card. Follow the stack pattern to see how this is done.
*Think tissue box!
